Nordic Outswing Door
Enter into a new standard for quality. Employing our revolutionary aluminum-wood composite construction, the Nordic Outswing Door is packed with innovation to maximize views yet still achieve high thermal efficiency. Unrivaled performance, beauty, and design flexibility for residential and commercial projects.
Why swing outwards?
While the Nordic Door is available with an inward swing, swinging outwards yields two key design advantages. First, by opening the door outwards, precious interior floor space is saved. Second, the weather seal performs better because the harder the wind blows the tighter the seal becomes. The reduced air infiltration saves energy and improves comfort.
Product Information
Interior wood frames are available in a variety of hardwood, softwood, and bamboo species including Forest Stewardship Council© certified materials. All wood materials are kiln dried and preservative treated to prevent deterioration.
Applied prior to assembly, our three-coat factory finish options include standard and custom paints, stains, and clearcoats.
Wood and bamboo are natural grain materials and will always exhibit individual characteristics and features. The overall look of the product will vary depending on grain, texture, and color of the wood. As such, these images are representative only and not to be considered an exact match of the final product.
Three finish options are available for our extruded aluminum profiles: powder coating, anodized finish, and Kynar® fluropolymer coatings.
Powder Coating, our most common finish, is highly durable in all environments. Select from our stock colors or custom colors.
Anodized finish gives any commercial or residential projects a timeless metallic aesthetic ranging from bright clear to deep black.
Kynar® PVDF coatings are exceptional for their ability to retain color and gloss keeping windows looking vibrant.
Rule of Thumb
The maximum area of a single door is 28 ft² and 57 ft² for a double door. For custom sizes exceeding these dimensions, contact a product representative.
Egress Dimensions:
Clear Width:
43.5″ rough opening yields 36″ clear width
39.5″ rough opening yields 32″ clear width
Clear Height:
82.5″ rough opening yields 80″ clear height.
Single Door
Min width: 24″ without wind brake
Min height: 78″
Standard heights: 80″, 82″, and 95.5″
Max width: 42″ or 48″ with continuous gear hinge
Max height: 120″
Max area: 28 ft²
Paired Door
Note: Widths of doors can be unequal
Min width: 36″
Min height: 78″
Standard heights: 80″, 82″, and 95.5″
Max width: 76″ with continuous gear hinge
Max height: 120″
Max area: 57 ft²
Fixed Sidelites
Note: Fixed sidelites are field mulled for single and paired doors. Each sidelite can be any size up to 60 ft² without exceeding 96″ in both directions. Nordic Doors can also be mulled to other H Window products instead of the fixed sidelite.
Dallas
Brass handle set with sleek lines and maintenance free bearings.

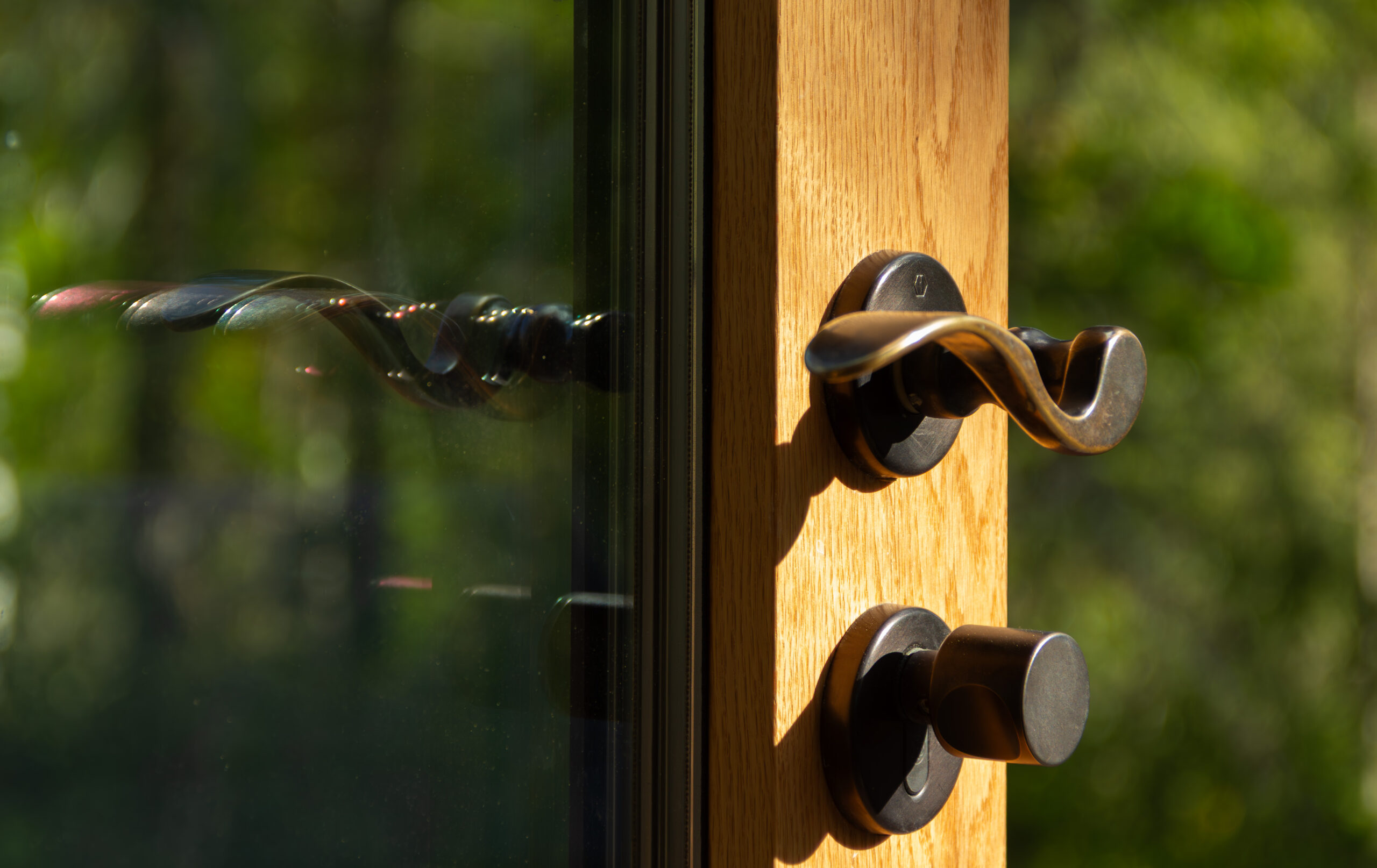

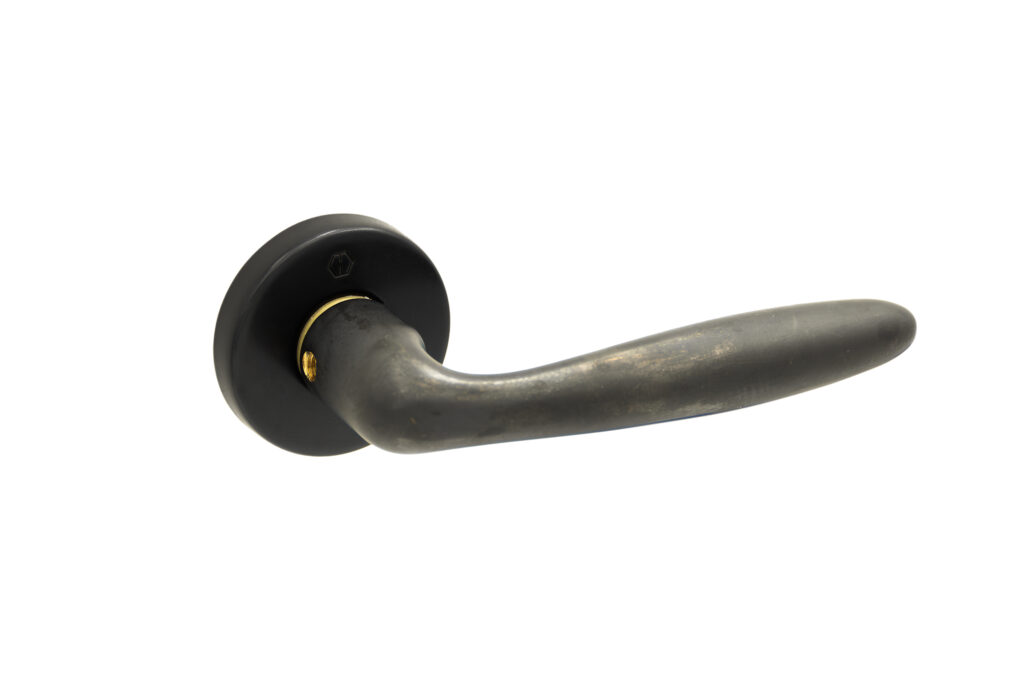

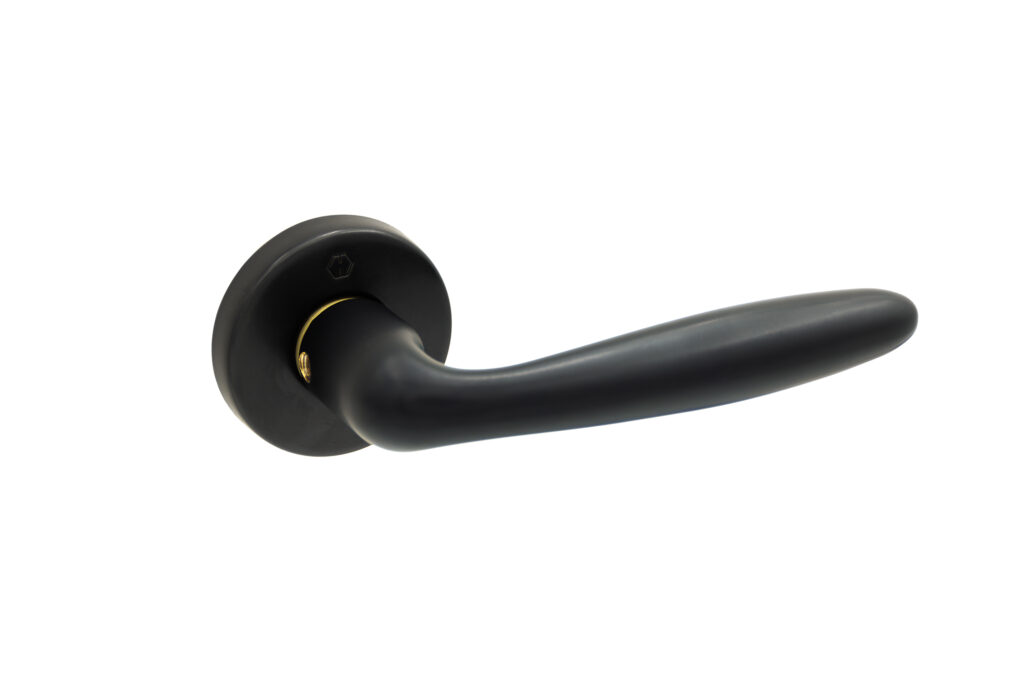

Verona
Brass handle set with sophisticated curves and maintenance free bearings.

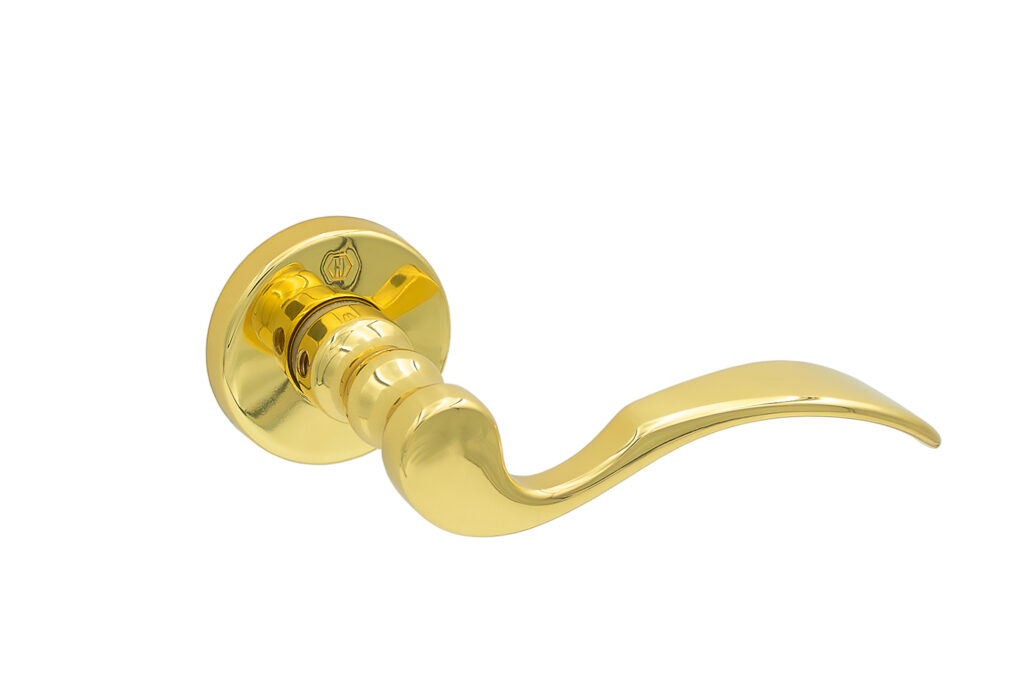

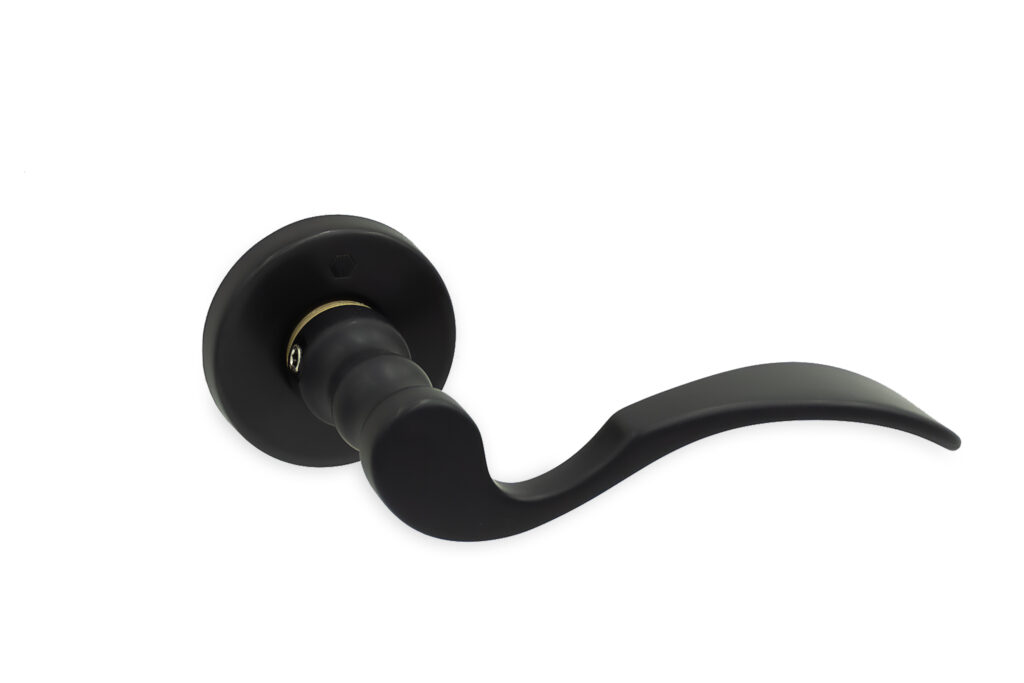

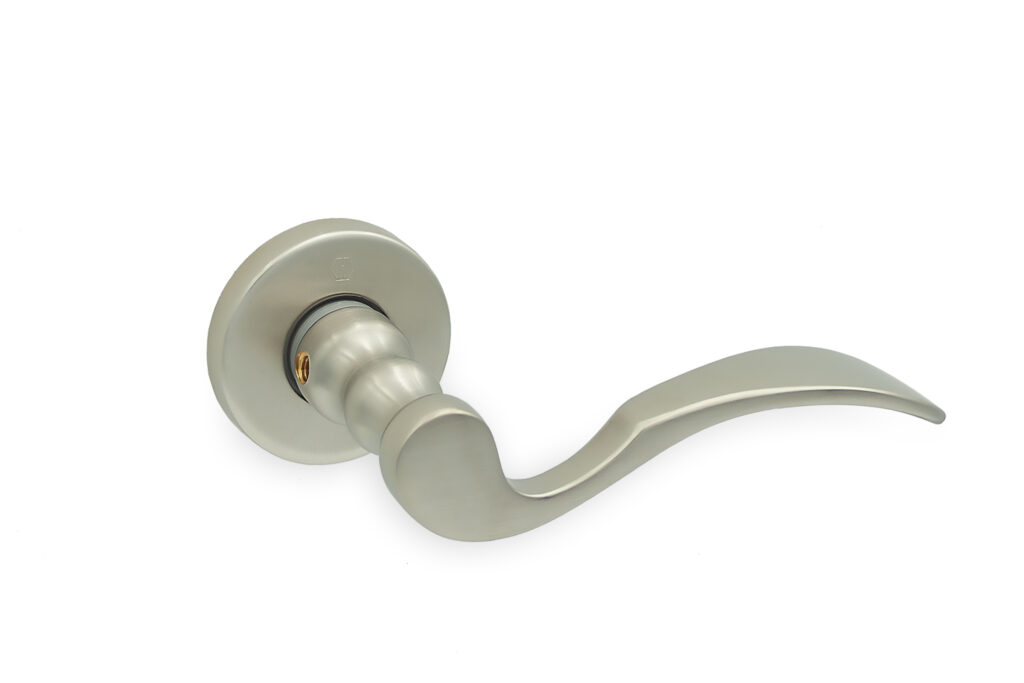

München
Brass handle set with traditional styling and maintenance free bearings.
Thermal Performance1
| Glazing Type2 | U-Factor Btu/ (hr·ft²·°F) NFRC 100 | SHGC NFRC 200 | VT NFRC 200 | CR NFRC 500 |
| Triple Pane – LoE 180 (#2, #5), 90% Argon, Endur Spacer | 0.27 | 0.35 | 0.43 | 57 |
| Triple Pane – LoE 270 (#2, #5), 90% Argon, Endur Spacer | 0.26 | 0.20 | 0.33 | 57 |
| Triple Pane – LoE 366 (#2), LoE 180 (#5), 90% Argon, Endur Spacer | 0.27 | 0.16 | 0.35 | 57 |
| Double Pane – LoE 180 (#2), 90% Argon, Endur Spacer | 0.35 | 0.40 | 0.48 | 56 |
| Double Pane – LoE 270 (#2), 90% Argon, Endur Spacer | 0.35 | 0.24 | 0.43 | 56 |
| Double Pane – LoE 366 (#2), 90% Argon, Endur Spacer | 0.34 | 0.18 | 0.40 | 56 |
Structural Performance3
| Performance Class & Grade Rating AAMA | CW-PG40 |
| Uniform Load Deflection ASTM E330 (L/175) | 85 PSF |
| Uniform Load Structural ASTM E330 (L/1000) | 127.5 PSF |
| Water Penetration Resistance ASTM E547 | 6 PSF |
| Air Leakage Resistance ASTM E283 | 0.02 cfm/ft² @ 1.6 PSF 0.06 cfm/ft² @ 6.3 PSF |
Acoustic Performance5
| Glazing Type | STC | OITC |
| Double Pane | 31 | 31 |
| Double Pane Laminated | 39 | 39 |
| Triple Pane | 39 | 39 |
Safety Performance
| Forced Entry Resistance AAMA 1304 | Egress Compliant | ADA Compliant |
| Pass (300 lbf point load) | Yes, with proper size and hardware configuration | Yes, with ADA hardware configuration |
Notes:
- Testing based on NFRC gateway size 960mm x 2090mm.
- Additional glass configurations available.
- Lab testing results, apply AAMA reductions for fi eld testing. Gateway size: 1016mm x 2108mm.
- Values based on glass only.
- Thermal performance differs with accessible threshold.
