The H Awning Window
Sought-after by architects and building owners for its quality construction, smooth operation, and superior performance, our Projected Awning Window revolutionized the window industry with its innovative hinge design allowing the window to fully rotate for easy cleaning and maintenance.
The H Hinge
Designed in Norway in 1959, the H Hinge allows a window to flip a full 180º for easy cleaning and maintenance. The hinge is perfectly balanced at the sash’s center point allowing for smooth and controlled rotation. The robust hinge can support large windows up to 25 square feet and 250 lbs. It’s been cycle tested up to 70,000 operations without failure.
Product Information
Interior wood frames are available in a variety of hardwood, softwood, and bamboo species including Forest Stewardship Council© certified materials. All wood materials are kiln dried and preservative treated to prevent deterioration.
Applied prior to assembly, our three-coat factory finish options include standard and custom paints, stains, and clearcoats.

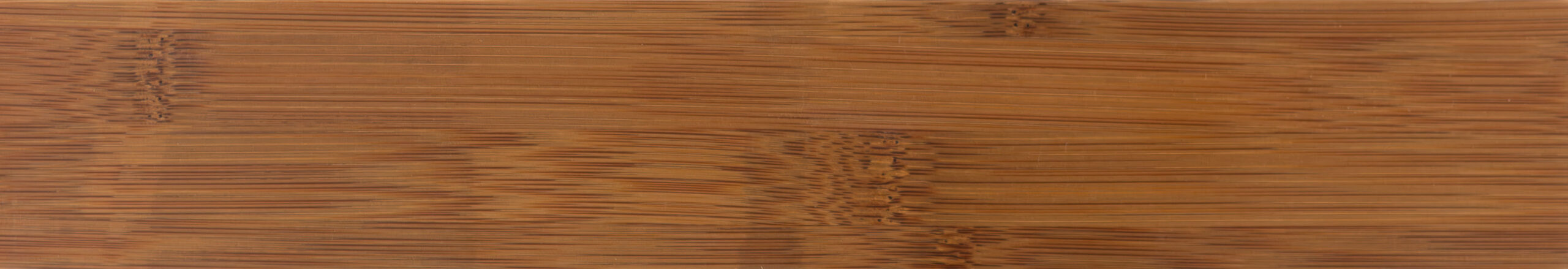

Wood and bamboo are natural grain materials and will always exhibit individual characteristics and features. The overall look of the product will vary depending on grain, texture, and color of the wood. As such, these images are representative only and not to be considered an exact match of the final product.
Three finish options are available for our extruded aluminum profiles: powder coating, anodized finish, and Kynar® fluropolymer coatings.
Powder Coating, our most common finish, is highly durable in all environments. Select from our stock colors or custom colors.
Anodized finish gives any commercial or residential projects a timeless metallic aesthetic ranging from bright clear to deep black.
Kynar® PVDF coatings are exceptional for their ability to retain color and gloss keeping windows looking vibrant.

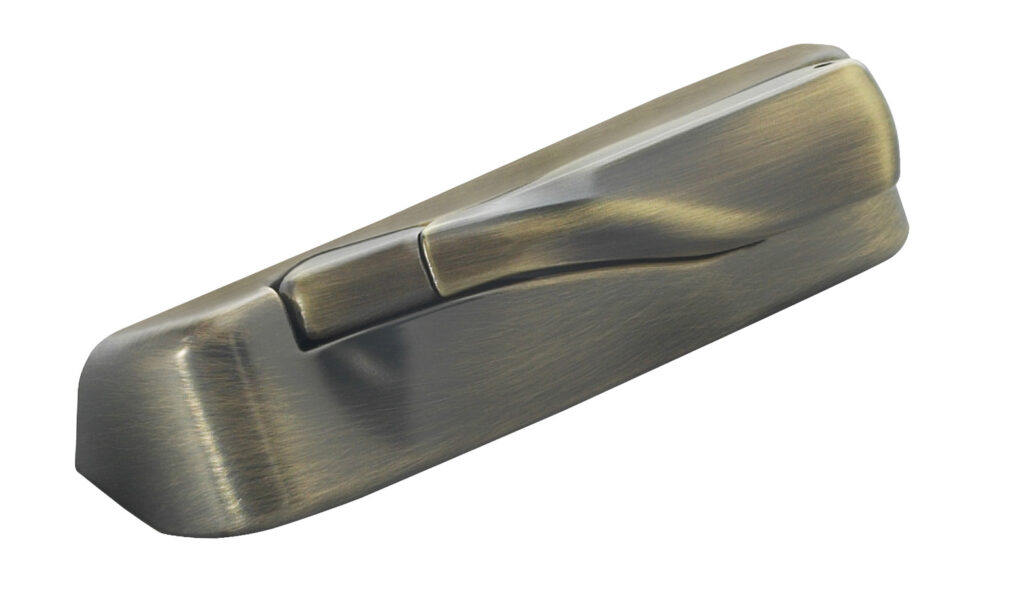

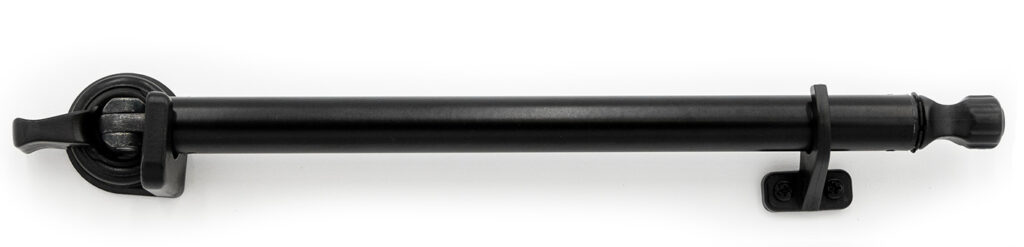

Encore Roto-Crank
Streamlined full-flip folding handle will not collapse during operation. Allows the venting angle position to be locked in place.
- May not be fire egress code compliant. Consult your local building official.
- ADA compliant optional

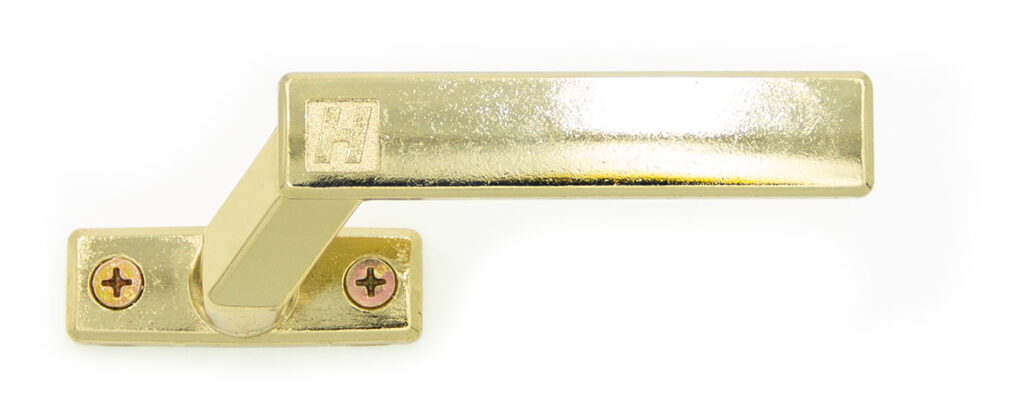

Lever Handle
Simple lever handle ensures sash is tightly sealed. Custodial handle available for installations where operability is controlled by facility managers.
- Lever handles are fire egress and ADA code compliant
- Custodial handle is not fire egress nor ADA code compliant
Rule of Thumb
Window openings less than or equal to 25 ft² are easily achievable. However, if you’d like your window opening to exceed this give us a call.
Egress Windows:
Awning Windows can be used as egress windows. For egress size configuration review the technical data sheet linked here for more information.
The H Awning Window is designed to be easily combined into field mulled arrangements with other H Window door and window products.
Our thoughtful design innovations eliminate mosquitos and maintenance! Extruded aluminum frames with staked corner keys are more robust than typical roll-form aluminum screen frames.
Screens are securely attached to the window frame with ABS latch clips to allow easy removal.
Clear Advantage™ fiberglass screens provide more visibility and ventilation without sacrificing strength or durability. Other fabric options include aluminum mesh, pet resistant, extra strength, small insect, and sun protection.
Design versatility of the H Awning Window is amplified with customizable accessories including divided lites, extension jambs, and sash limiters.
Thermal Performance1
| Glazing Type2 | U-Factor Btu/ (hr·ft²·°F) NFRC 100 | SHGC NFRC 200 | VT NFRC 200 | CR NFRC 500 |
| Triple Pane – LoE 180 (#2, #5), 90% Argon, Endur Spacer | 0.26 | 0.33 | 0.40 | 66 |
| Triple Pane – LoE 270 (#2, #5), 90% Argon, Endur Spacer | 0.26 | 0.19 | 0.31 | 66 |
| Triple Pane – LoE 366 (#2), LoE 180 (#5), 90% Argon, Endur Spacer | 0.28 | 0.16 | 0.33 | 63 |
| Double Pane – LoE 180 (#2), 90% Argon, Endur Spacer | 0.34 | 0.38 | 0.46 | 54 |
| Double Pane – LoE 270 (#2), 90% Argon, Endur Spacer | 0.33 | 0.22 | 0.40 | 55 |
| Double Pane – LoE 366 (#2), 90% Argon, Endur Spacer | 0.33 | 0.17 | 0.38 | 56 |
Structural Performance3
| Performance Class & Grade Rating AAMA | AW-PG704 |
| Uniform Load Deflection ASTM E330 (L/175) | 70 PSF |
| Uniform Load Structural ASTM E330 (L/1000) | 105 PSF |
| Water Penetration Resistance ASTM E547 | 15 PSF |
| Air Leakage Resistance ASTM E283 | <0.03 cfm/ft² @ 6.2 PSF |
Acoustic Performance5
| Glazing Type | STC | OITC |
| Double Pane | 31 | 31 |
| Double Pane Laminated | 39 | 39 |
| Triple Pane | 39 | 39 |
Safety Performance
| Forced Entry Resistance ASTM F588 | Egress Compliant | ADA Compliant |
| Grade 40 | Yes, with proper size and hardware configuration | Yes, with ADA hardware configuration |
Notes:
- Testing based on NFRC gateway size 600mm x 1500mm.
- Additional glass configurations available.
- Results from lab testing, apply AAMA reductions for fi eld testing.
- Ratings exceeding AW-PG70 available upon request.
- Values based on glass only.
